McOnie Oscillating Engine Model Engineering

W. & A. McOnie Oscillating Engine Kit to Machine

W. & A. McOnie Oscillating Engine Kit to Machine
McOnie Model Engineering Steam Engine Casting KitMcOnie Model Engineering Steam Engine Casting KitMcOnie Model Engineering Steam Engine Casting KitMcOnie Model Engineering Steam Engine Casting Kit
McOnie Model Engineering Steam Engine Casting KitMcOnie Model Engineering Steam Engine Casting KitMcOnie Model Engineering Steam Engine Casting Kit

Cotswold Heritage Model Engineering.

Something a little different for the Model Engineer to machine, an Inclined Oscillating Steam Engine by the once Glasgow based engineering firm of W & A McOnie.

A Cotswold Heritage casting kit for the Model Engineer to machine in the workshop.


Customers wishing to order this product are asked to contact us directly.

Price: 245.00
(Including VAT at 20%)





McOnie described this steam engine as their 'angular type' and endowed it with some elegant architectural features together with sophistication in the form of an eccentric driven slide valve and compact bevel gear-driven governor.

The research and detail design relating to this model engineering kit was carried out by one of the World's leading experts and has resulted in an engineering casting kit for the Model Engineer to machine which is both challenging and rewarding. Remaining within the capacity of a typical home workshop the model has a nominal flywheel diameter of 200mm.

The model engineering kit comprises; high quality bronze castings for the cylinder, steam chest and two ornate side frames. Cast iron flywheel, alloy bed plate, laser cut crankshaft blank, machine cut steel gears, two preformed copper elbows, hard wood for base, drive band and a clear comprehensive A4 drawing pack which suggests other materials and fixings that may be required.

Customer Construction Images

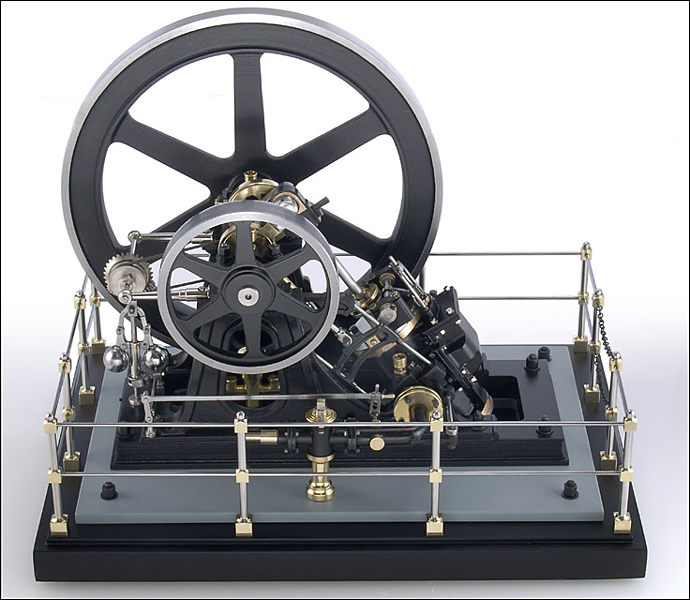

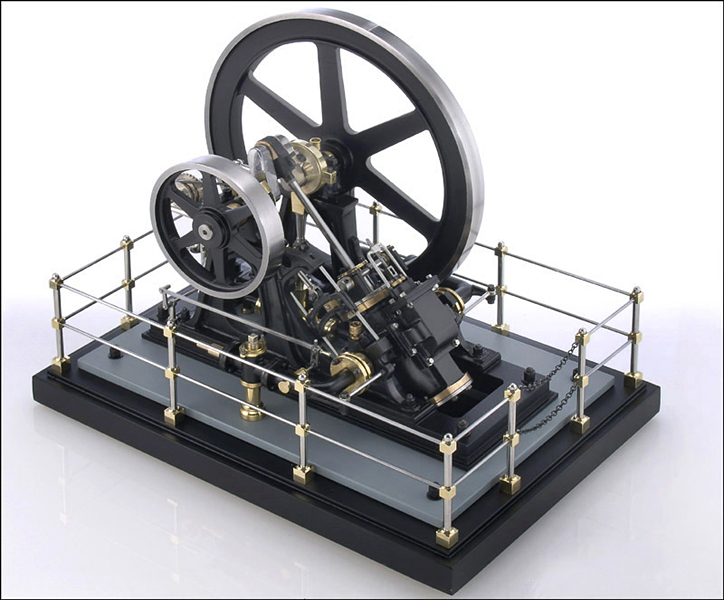

This McOnie Oscillating Engine kit has been completed and photographed by Herr Eckart Kercher of Germany who as with many of our customers endorsed the quality of our castings to be "very good, without gas bubbles" . The completed McOnie Oscillating Engine is a superb effort demonstrating excellent workmanship to produce an exhibition quality result.




Image Copyright: www.eckhartkercher.de. All rights reserved.




The W. & A. McOnie Oscillating Engine - Model Engineering Casting Kit has been featured in a series of engineering articles written by Mr Anthony Mount in the Model Engineer Magazine starting in Vol. 200, No. 4324, 25th April - 8th May 2008 and offers an illustrated guide to assist machining the castings and building the model.

To subscribe to, or arrange the back copies of the Model Engineer Magazine, visit the MyHobbyStore website.





The McOnie Kit - Castings for the Model Engineer to Machine

  • Cylinder Casting of Bronze
  • Steam Chest Casting of Bronze
  • Two (2) Side Frame Castings of Bronze
  • Flywheel Casting of Cast Iron
  • Bed Plate Casting of Aluminium
  • Crankshaft Blank - Laser cut
  • Two (2) Machine Cut Gears
  • Two (2) Specialist Copper Elbows
  • Drive Band of Steel
  • Mahogany Machined Wooden Base
  • Comprehensive and Clear drawing pack
  • Details of other materials and fixings required to complete the kit
